ΕΠΕΝΔΥΟΜΕΝΟ ΓΡΑΜΜΙΚΟ ΚΑΝΑΛΙ ΑΛΟΥΜΙΝΙΟΥ SLOT ΤΥΠΟΣ “ALUSIDE DRAIN 40”
Request a quote
Description
"Invisible" slot channel "SLOT 40" made of anodized aluminum, which provides the option of choosing the coating of the final surface to match perfectly with all the architectural elements as well as with the surrounding space.
Alu Side – Drain 40 is a complete drainage system – monoblock, made of high-quality aluminum profiles, with a linear grid and special assembly links integrated into the channel. It also has internal or external corner connections, control wells, terminals and fittings.
Its new design allows it to be applied indoors or outdoors with low available installation height such as terraces, balconies, renovations, etc.
The corner connection (internal - external) can also be used as an autonomous drainage system.
Materials:
The drainage system Alu Side – Drain 40 does not include plastic parts. All parts and accessories are manufactured from:
– Anodized Aluminum. (Anodizing 15 microns)
Tech Spec
With the new ergonomic design low overall installation height of 83mm, 14mm thin grid and 40mm lining height, is an innovation in surface water drainage since it can be lined with tiles, cobblestones, marble, wood, stone, or any other material, so that after its installation it is almost invisible
| CODE | External Dimensions (mm) | SLOT (In / Outl) (mm) | ΣΥΝΟΛΙΚΟ ΥΨΟΣ (mm) | CLADDING HEIGHT (mm) |
| IASYASD-40/500 | 110×500 | 22 / 14 | 83 | 40 |
| IASYASD-40/1000 | 110×1000 | 22 / 14 | 83 | 40 |
| CODE | DESCRIPTION | External Dimensions (mm) | SLOT (In / Outl) (mm) | TOTAL HEIGHT (mm) | CLADDING HEIGHT (mm) |
| IASYASDINW-40/ES | INTERNAL CORNER CONNECTION | 110×500/500 | 22 / 14 | 83 | 40 |
| IASYASDUNW-40/EX | EXTERNAL CORNER CONNECTION | 110×500/500 | 22 / 14 | 83 | 40 |
| CODE | DESCRIPTION | External Dimensions (mm) | SLOT (In / Outl) (mm) | TOTAL HEIGHT (mm) | CLADDING HEIGHT (mm) |
| IASYASDI-40 | ΦΡΕΑΤΙΟ ΕΛΕΓΧΟΥ ΑΠΛΟ | 110×250 | 22 / 14 | 83/40 | 32 |
| IASYASDIHU-40 | INSPECTION MANHOLE WITH HORIZONTAL Ø30 OUTLET | 110×250 | 22 / 14 | 83/40 | 32 |
| IASYASDIVU-40 | INSPECTION MANHOLE WITH VERTICAL Ø75 OUTLET | 110×251 | 22/ 14 | 83/40 | 32 |
| CODE | DESCRIPTION | ΕΞΟΔΟΣ (mm) |
| IASYASDVS-40 | CHANNEL JOINT | |
| IASYASDEL-40/L | LEFT END CAP FOR CHANNEL | |
| IASYASDER-40/R | RIGHT END CAP FOR CHANNEL | |
| IASYASDEL30-40/L | ΑΡΙΣΤΕΡΟ ΤΕΛΙΩΜΑ ΚΑΝΑΛΙΟΥ ΟΡΙΖΟΝΤΙΑ ΕΞΟΔΟ | Φ30 |

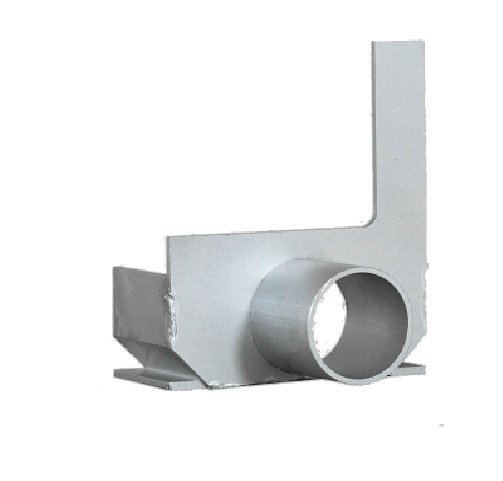

| IASYASDER30-40/R | ΔΕΞΙ ΤΕΛΙΩΜΑ ΚΑΝΑΛΙΟΥ ΟΡΙΖΟΝΤΙΑ ΕΞΟΔΟ | Φ30 |
| Size mm | 110×500, 110×1000 |
|---|
