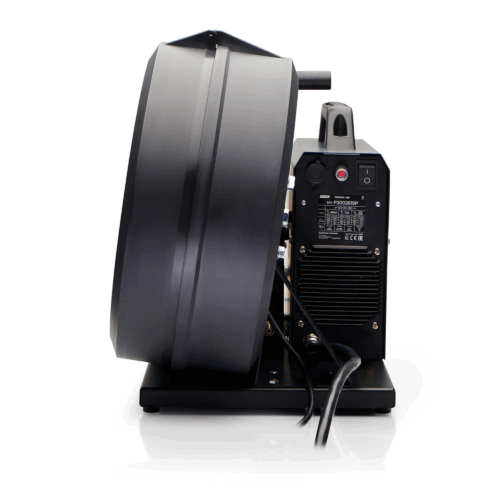

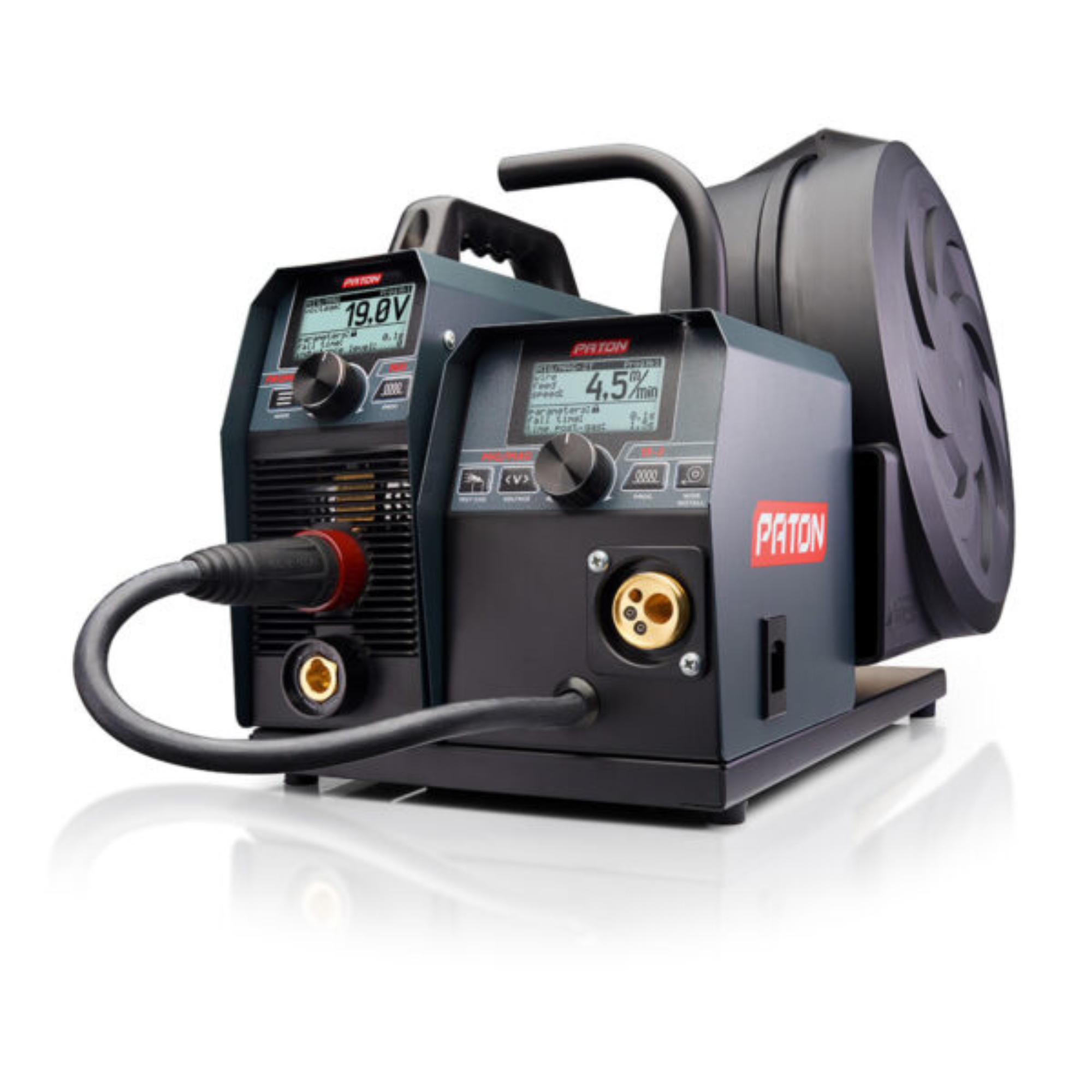

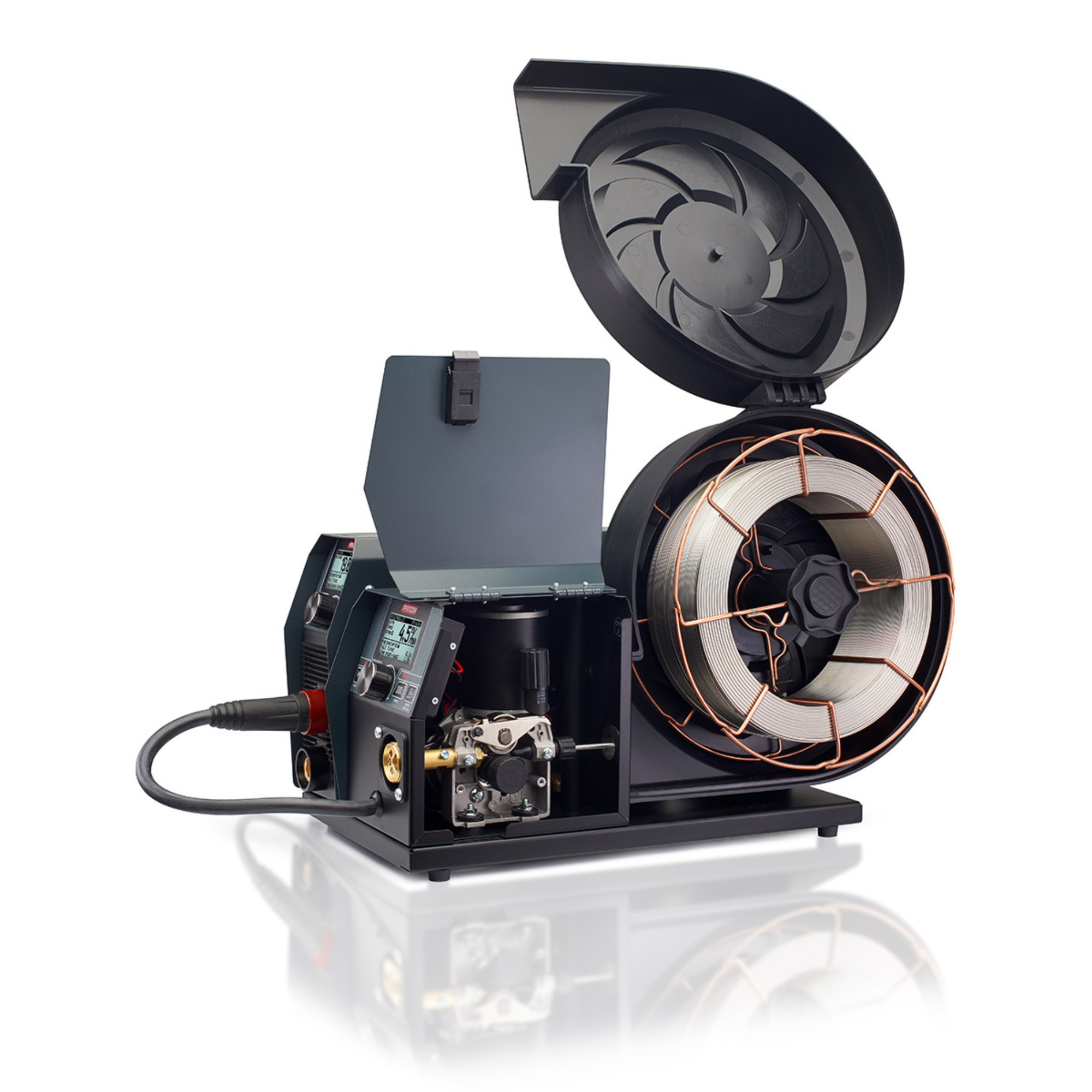

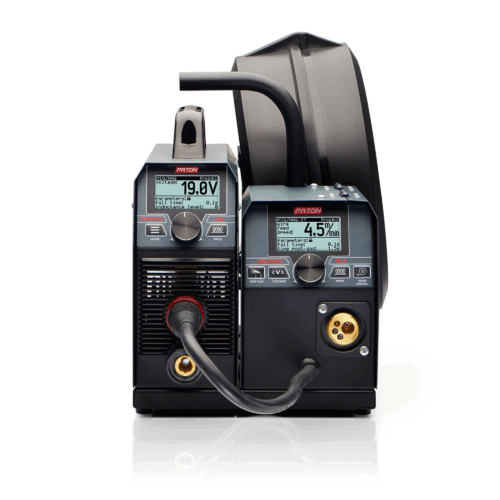

WELDER INVERTER MIG/MAG MMA/TIG LIFT PATON PROMIG-160 (15-2)
Request a quote
| Rated power supply voltage 50/60 Hz | 230 V |
| Rated welding current | 160 A |
| Maximum operating current | 215 A |
| Rated power supply current | 18 … 21 A |
| Operating load factor % | 70% – 160 А / 100% – 134 А |
| Power supply voltage range | 160 – 260 V |
| Welding current control range | 8 – 160 A |
| Welding current control range | 12 – 24 V |
| Wire feeding speed control range | 2,0 – 16 m/min |
| Diameter of a stick electrode | 1,6 – 4,0 mm |
| Number of pressure rolls | 2 |
| Diameter of electrode wire | 0,6 – 1,0 mm |
| Coil weight | 15 kg |
| Welding processes with a pulse welding mode | MMA/TIG/MIG/MAG |
| Function “Hot-Start” | Adjustable |
| Function “Arc-Force” | Adjustable |
| Function “Anti-Stick” | Automatic |
| Reduction of open-circuit voltage | ON / OFF |
| Open-circuit voltage | 12 / 75 V |
| Welding arc starting voltage | 110 V |
| Rated consumed power | 4,1 … 4,7 kVA |
| Maximum consumed power | 5,9 kVA |
| Efficiency coefficient | 90% |
| Cooling | Automatic |
| Operating temperature range | –25 … +45 ºС |
| Fulfilled standards: | EN 60204 – 1:2006 , EN 60974 – 1:2012, EN 60974 – 10:2014 |
| Overall dimensions (length, width, height) | 360 x 260 x 270 |
| Weight | 10.1 kg |
| Protection Class | IP 33 |
