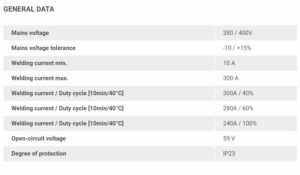

Mains voltage -20 / + 15% | 3X400 V , 3X460 V / 600 V |
Mains fuse protection (slow-blow) | 35A |
Mains tolerance | -10 / +15% |
Maximum primary power | 11.8 kVA |
WELDING CURRENT RANGE | |
MIG/MAG | 10-300A |
MMA | 10-300A |
TIG | 10-300A |
WELDING CURRENT – MIG / MAG | |
10min/40oC (104oF) 30% D.C | 300A (40%) |
10min/40oC (104oF) 100% D.C | 240A |
MMA | |
10min/40oC (104oF) 35% D.C | 300A (40%) |
10min/40oC (104oF) 100% D.C | 240A |
TIG | |
10min/40oC (104oF) 35% D.C | 300A (40%) |
10min/40oC (104oF) 100% D.C | 240A |
Open circuit voltage | 59V |
OUTPUT VOLTAGE RANGE | |
MIG/MAG | 14.5-29 V |
MMA | 20.4-32.0 V |
TIG | 10.4-22.0 V |
Degree of protection | IP 23 |
Dimensions I x W x H | 747x300x497mm / 29.4×11.8×19.6 in |
Weight | 36Kg (79.4 lb) |
