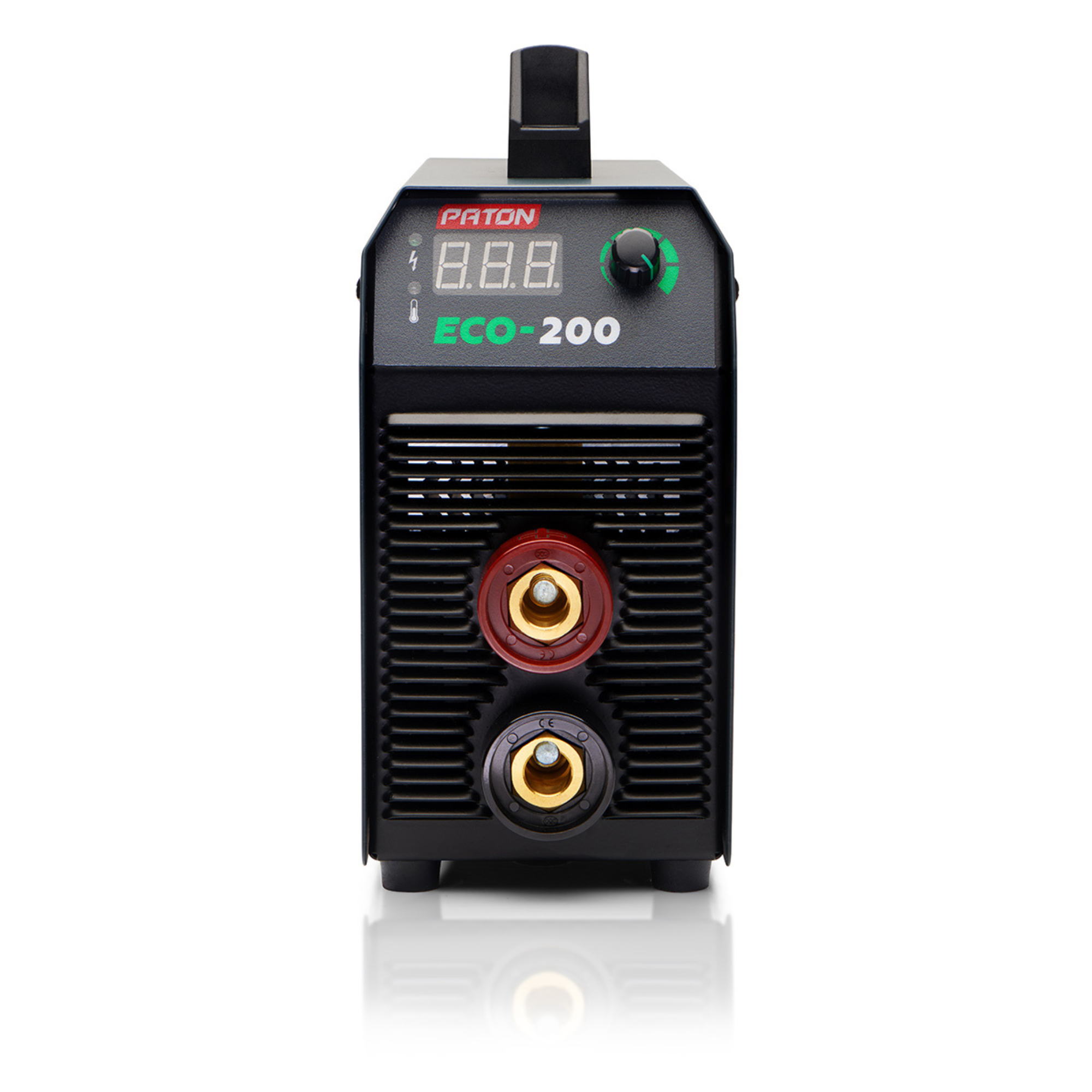

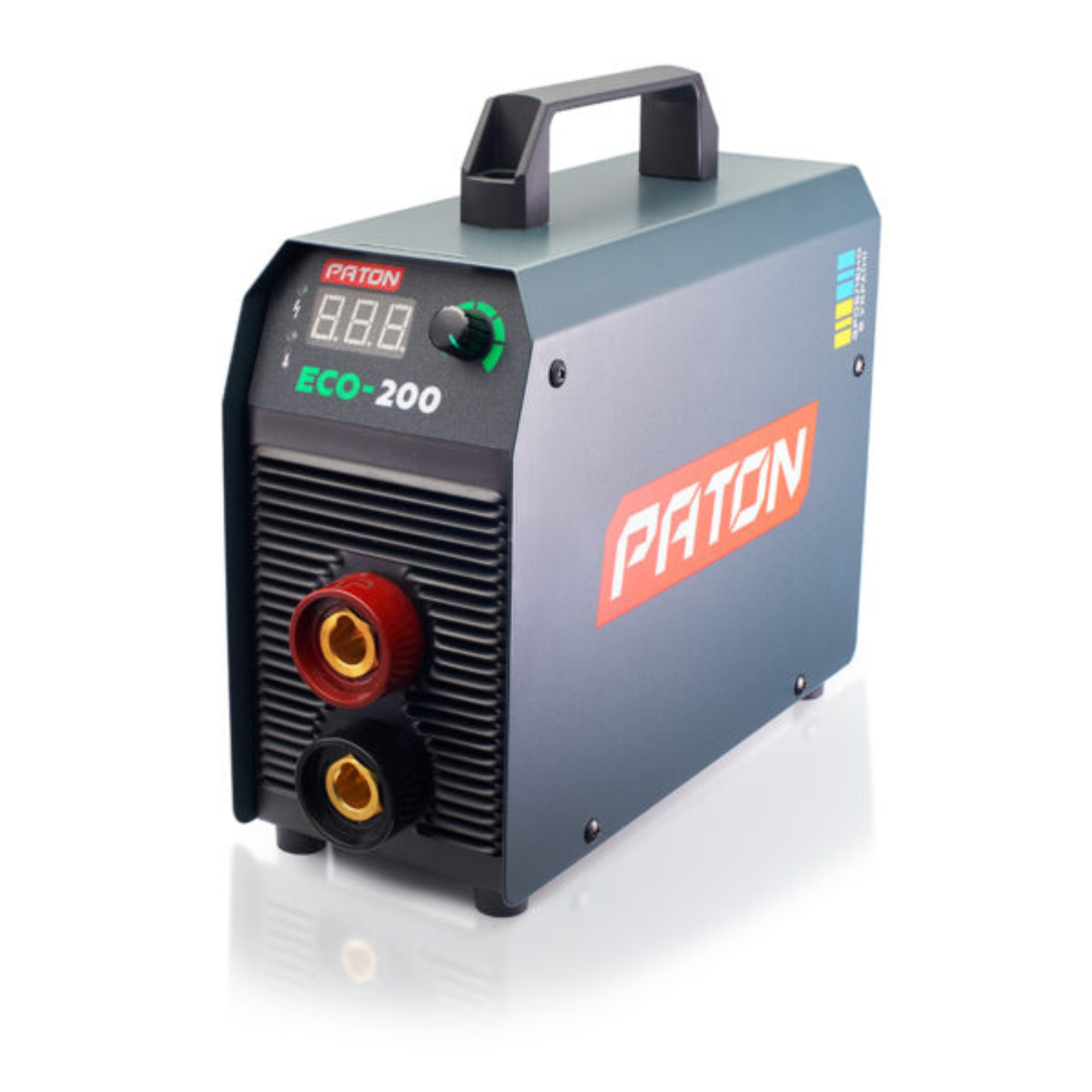

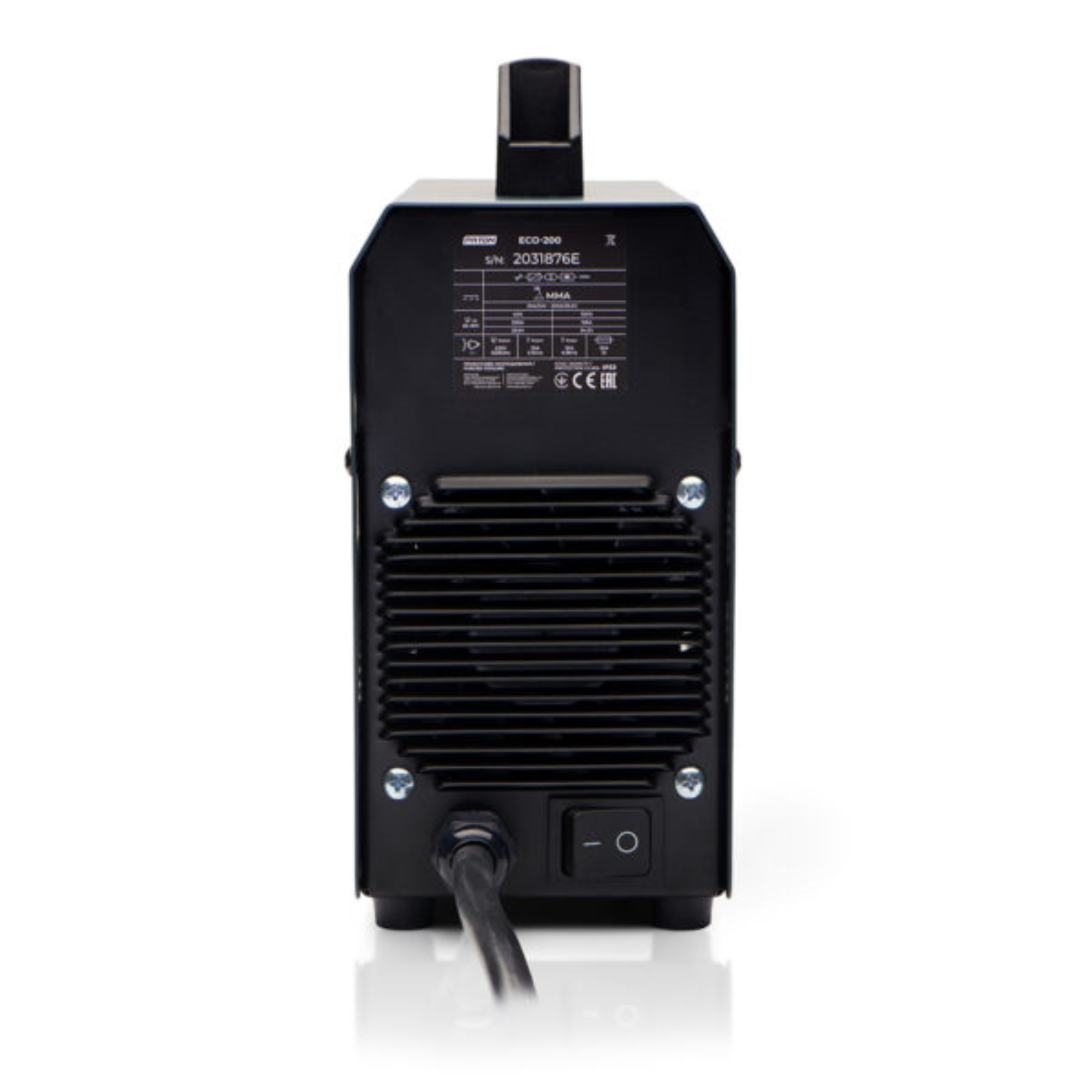

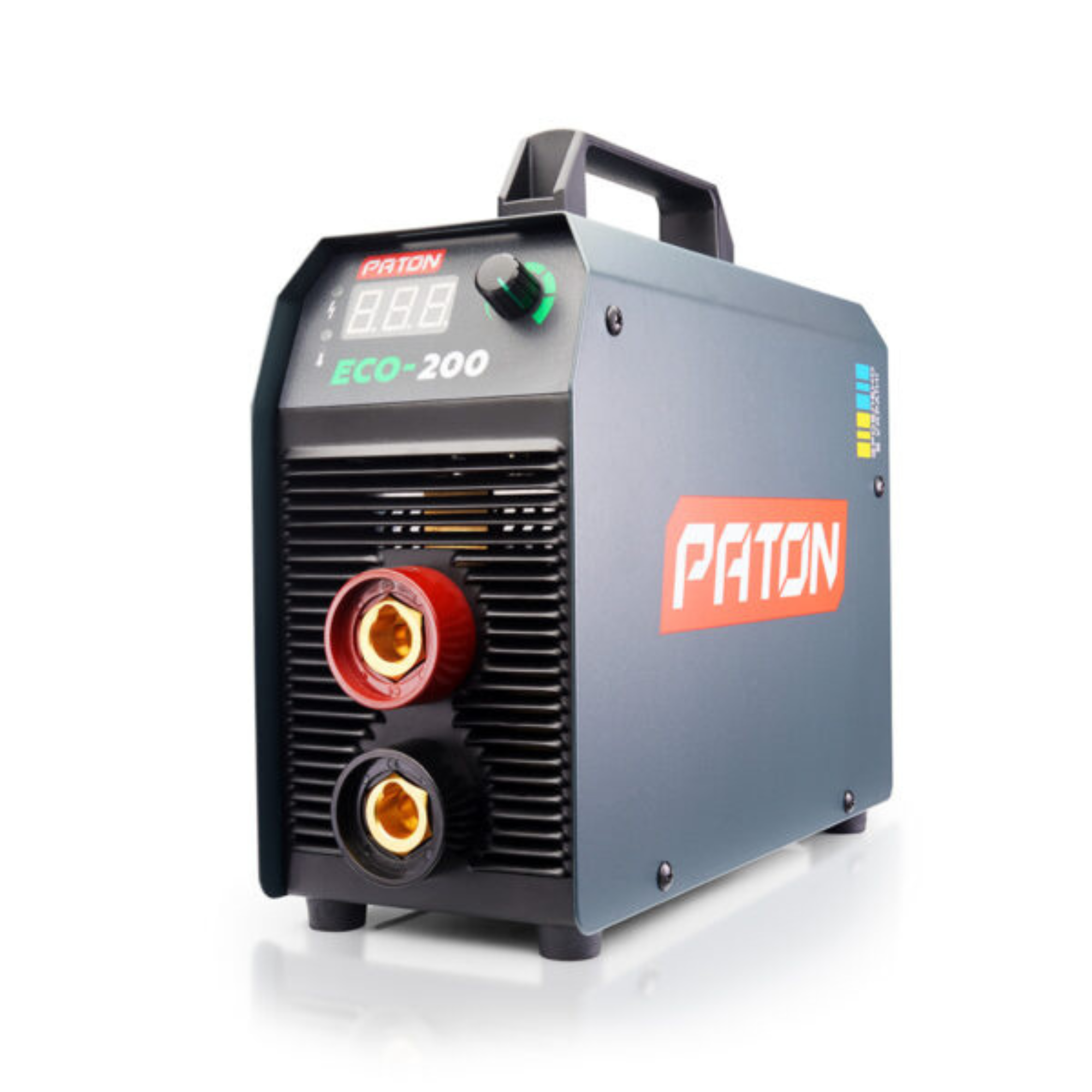

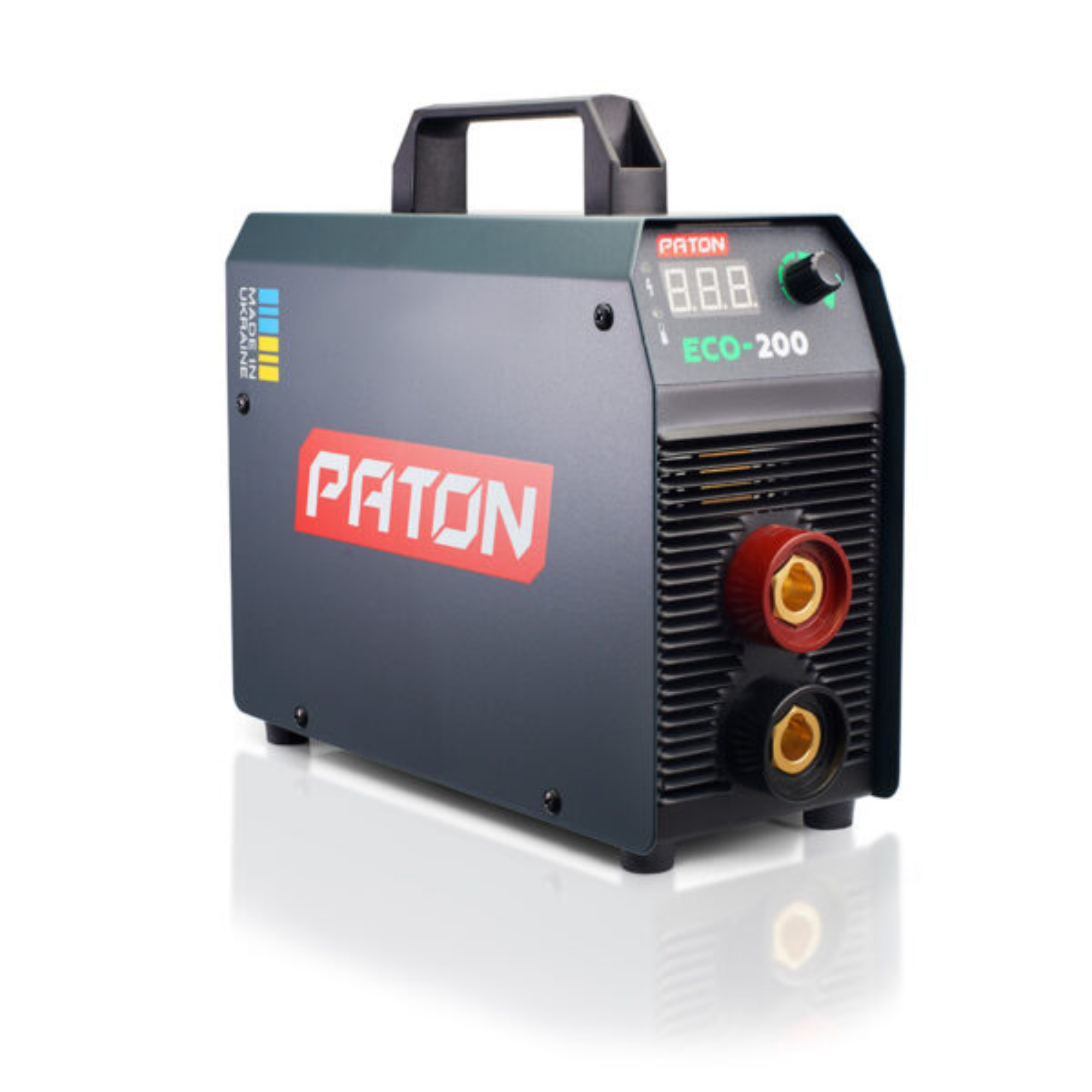

Stick Welder Inverter MMA ECO-200

Request a quote

Rated power supply voltage 50/60 Hz 230 V
Rated power supply current 25 A
Rated welding current 200 A
Maximum operating current 240 A
Operating load factor % 40% – 200 А / 100% – 126 А
Power supply voltage range 170 – 260 V
Welding current control range 25 – 200 A
Function “Hot-Start” Automatic
Function “Arc-Force” Automatic
Function “Anti-Stick” Automatic
Open-circuit voltage up 80 V
Welding arc starting voltage 110 V
Rated consumed power 5,5 kVA
Maximum consumed power 6,9 kVA
Efficiency coefficient 90%
Cooling Forced
Operating temperature range –25 … +45 ºС
Fulfilled standards EN 60204 – 1:2006 / EN 60974 – 1:2012 / EN 60974 – 10:2014
Overall dimensions (length, width, height) 270 х 110 х 200
Weight 3,95 kg
Protection class IP 21
