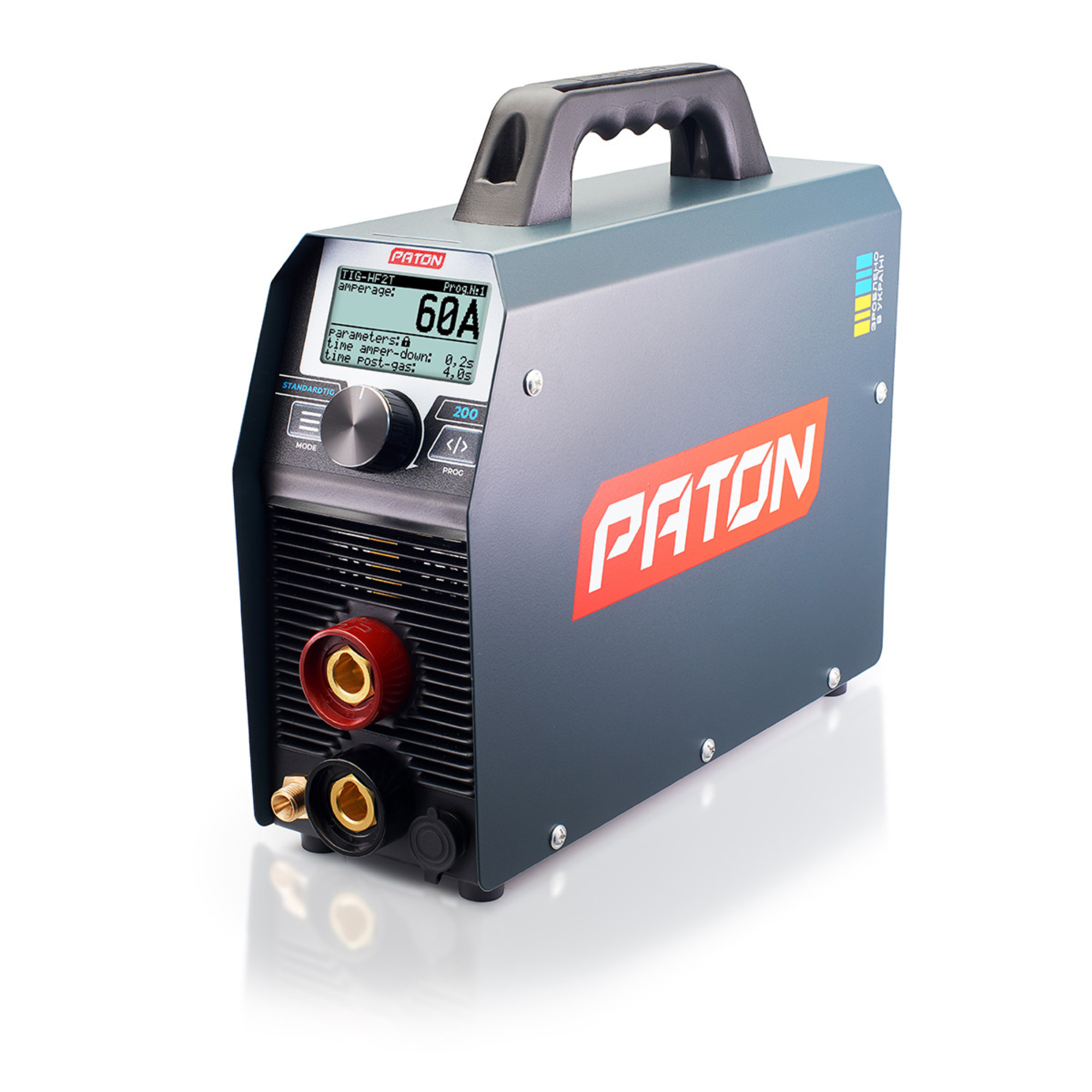

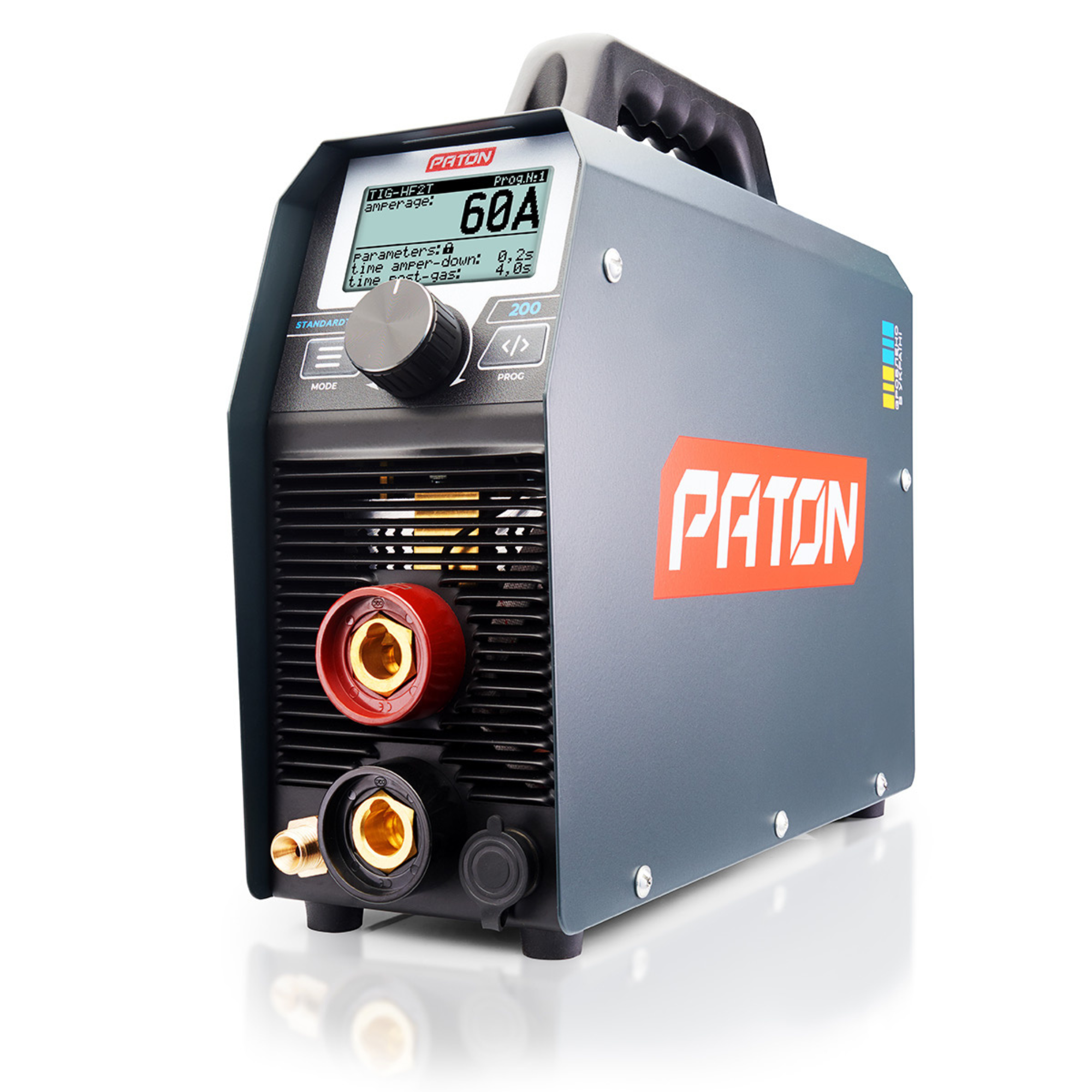

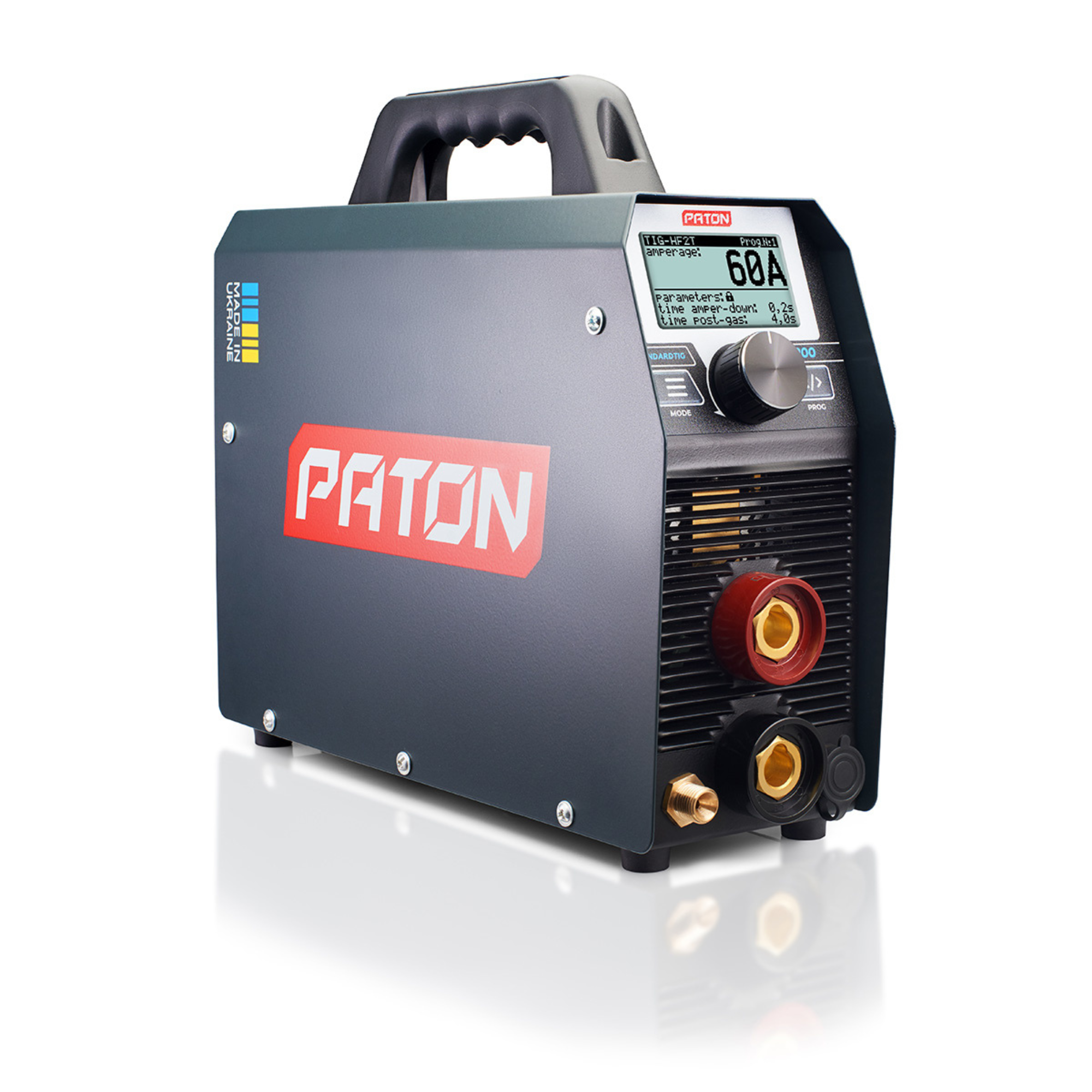

WELDER INVERTER TIG HF/MMA MIG/MAG PATON STANDARDTIG-200

Supply voltage 50/60 Hz	230 V
Required nominal current from the mains	25 – 28 A
Nominal welding current	200 A
Maximum welding current	270 A
Duty cycle, %	“45 % at 200 A / 100 % at 134 A”
Voltage change intervals	160 – 260 V
Welding current adjustment intervals	10 – 200 A
Welding voltage adjustment intervals	12 – 28 V
Diameter of the wrapped electrode	1,6 – 5,0 mm
Diameter of solid wire	0,6 – 1,0 mm
Pulsed welding methods	“MMA: 0,2…500 Hz / TIG: 0,2…500 Hz / MIG/MAG: 5…500 Hz”
Function “Hot-Start”	Regulated
Function “Arc-Force”	Regulated
Function “Anti-Stick”	Automatic
Idle voltage reduction system	On / Off
Idle current voltage	12 / 70 V
Arc event current voltage	110 V
Nominal power consumption	5,5 – 6,1 kVA
Maximum power consumption	6,6 – 8,0 kVA
Energy efficiency	90%
Cooling	Automatic
Operating temperature range	–25 … +45 ºС
Standards met:	“EN 60204 – 1:2006 / EN 60974 – 1:2012 / EN 60974 – 10:2014”
Dimensions (length, width, height), mm:	315 х 110 х 255
Weight of the welder itself, kg	5,8
Degree of protection	IP 21
