Plasma ProCUT-40

Request a quote

SKU PATOCUT40 Categories , ,

Description

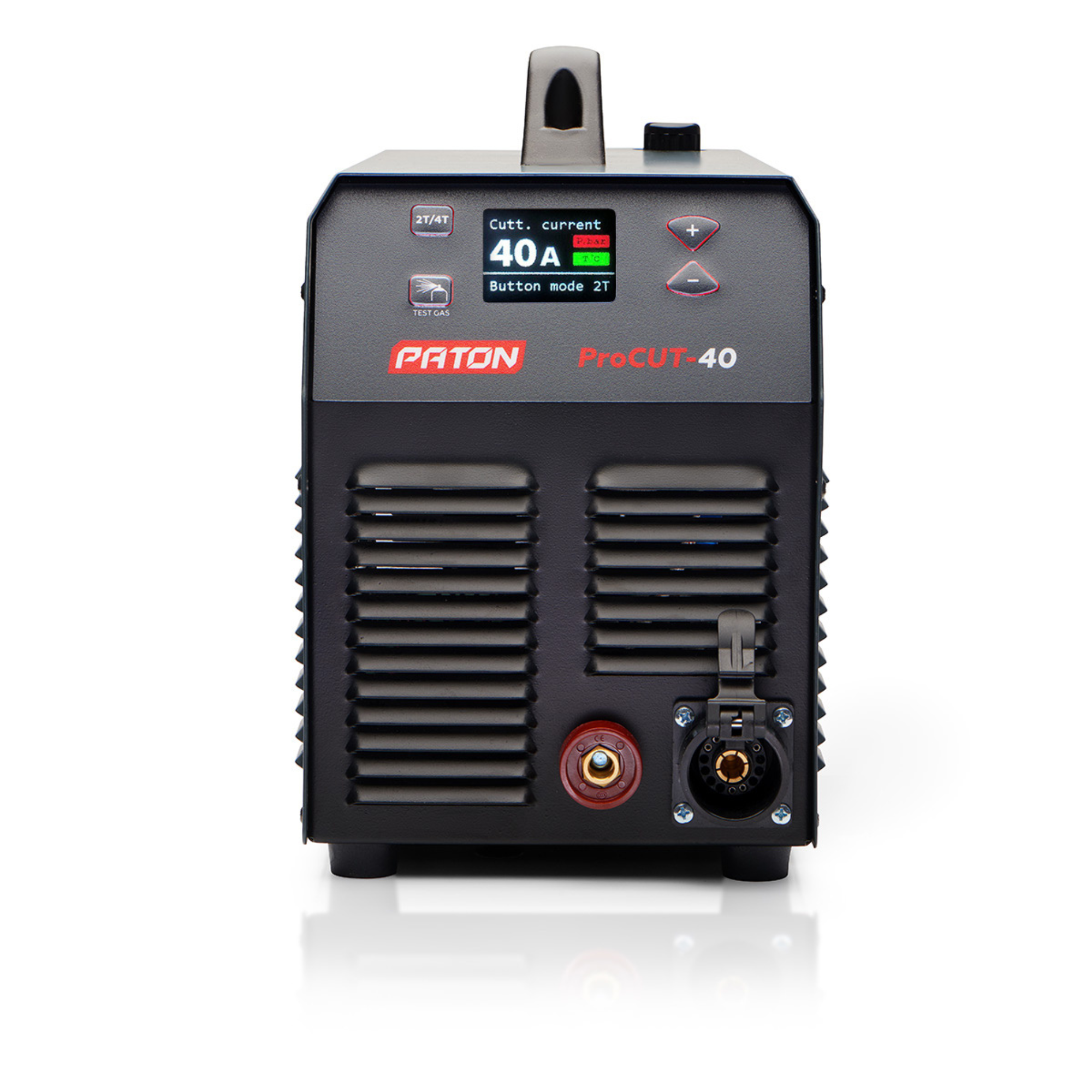

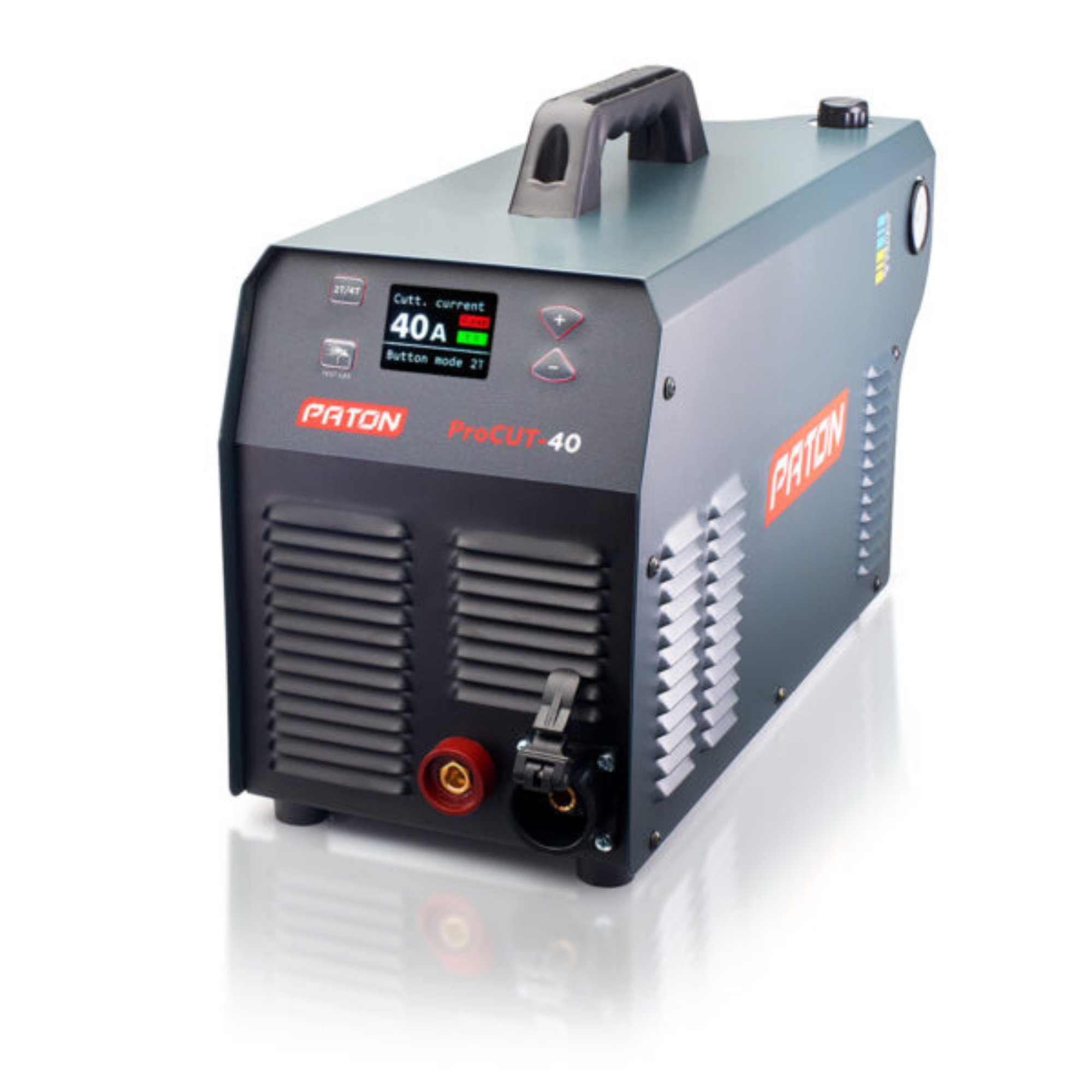

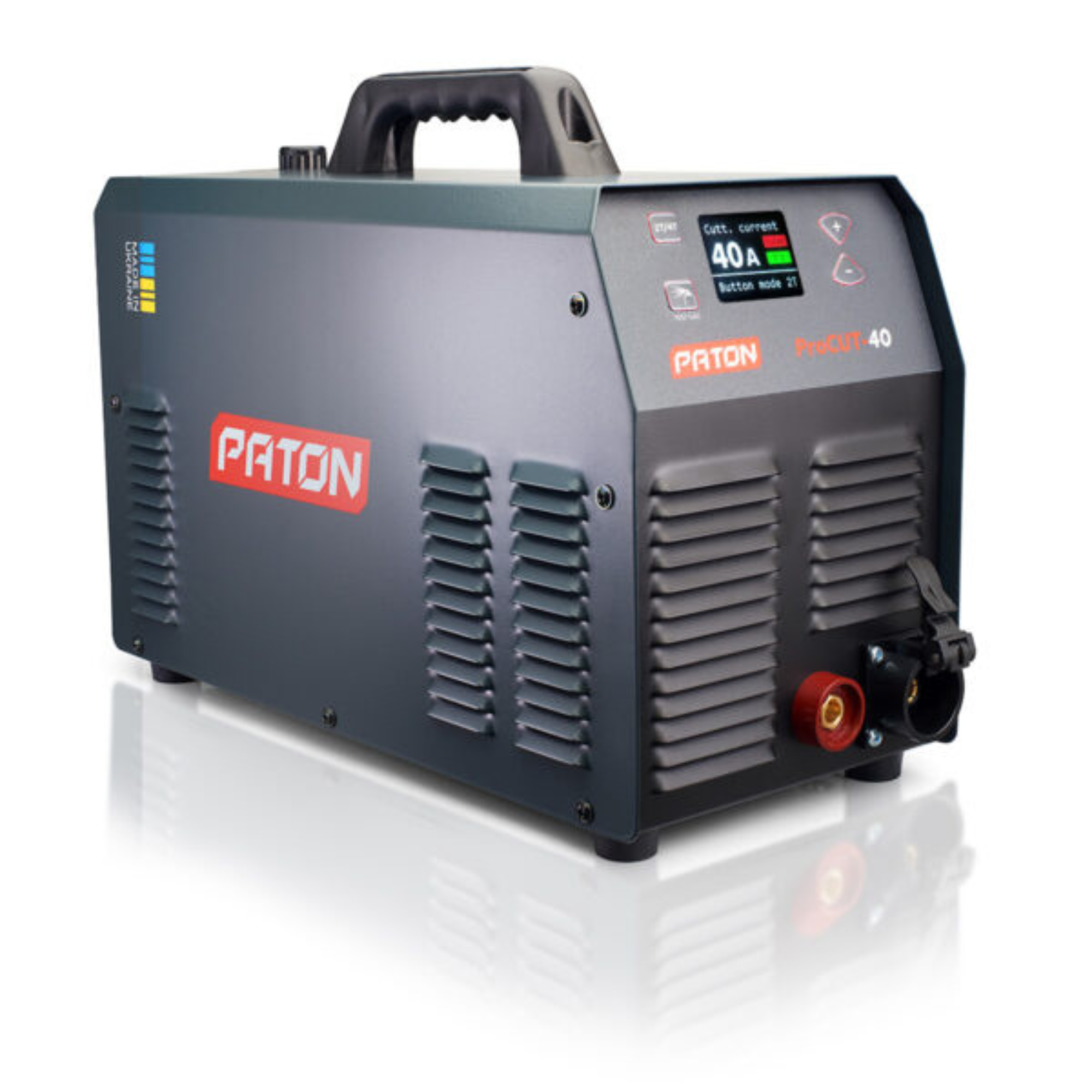

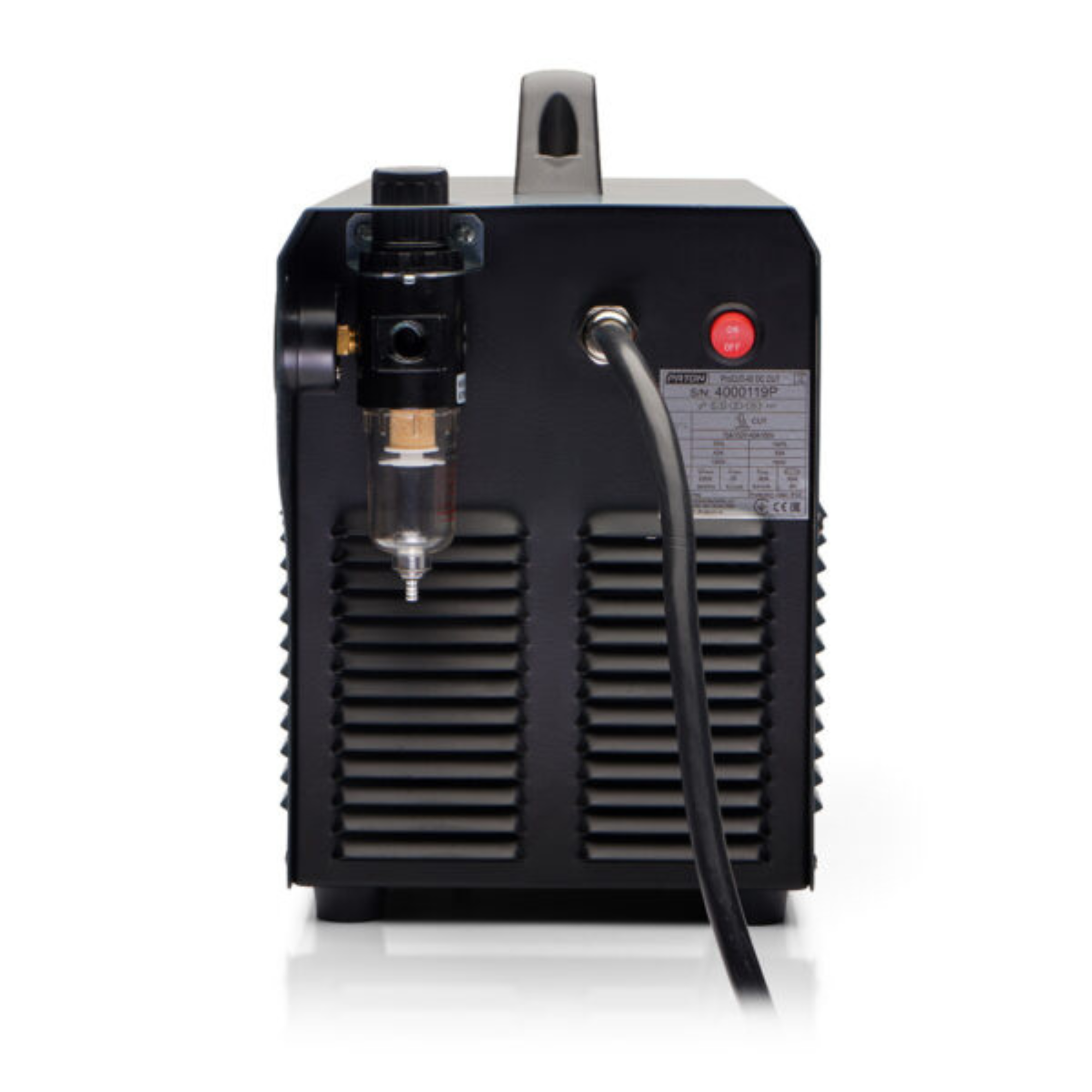

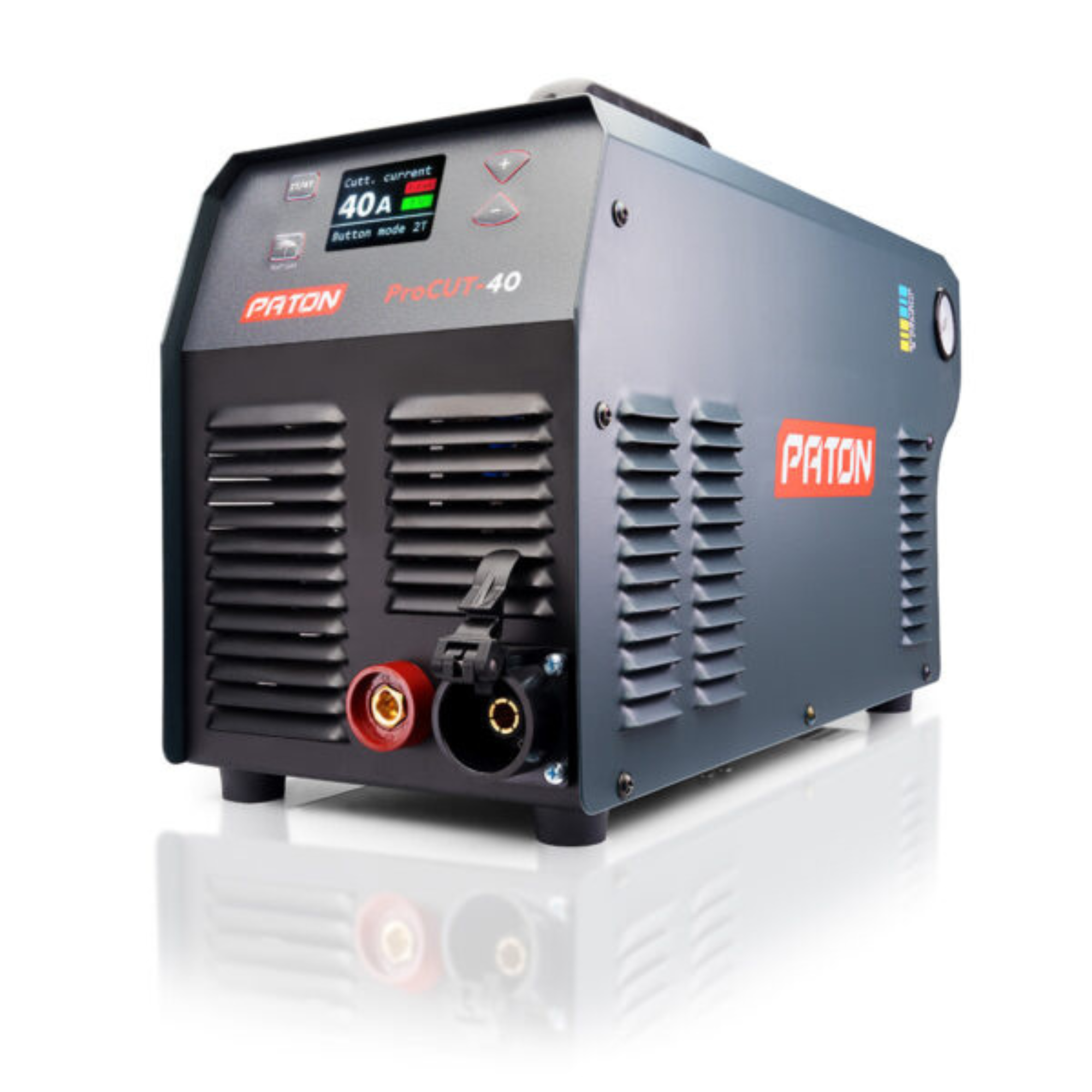

The ProCUT-40 inverter plasma cutter is designed for manual cutting of metals and alloys using an air plasma arc.
Thanks to the high-frequency inverter, the device is lighter and more compact compared to conventional equipment.

Rated power supply voltage, V 220±15%
Rated current consumption from the mains phase, А 30
Maximum thickness of cutting metal, mm 12
Operating load factor 70%
Cutting current regulation range, A 15-40
Power supply voltage range (V) 185-250
Operating air pressure range, MРa 0,5-0,55
Gas flow, l / min not less than 135
Pilot arc +
